Air Horns on the TDM
Started by
catsbum
, Sep 15 2007 04:21 pm
34 replies to this topic
#21
E-njoy
-
- Member
-
- 570 posts
Knight of Postsalot
- Location:Almere, Netherlands
- TDM model: 2006
Posted 17 September 2007 - 09:32 pm

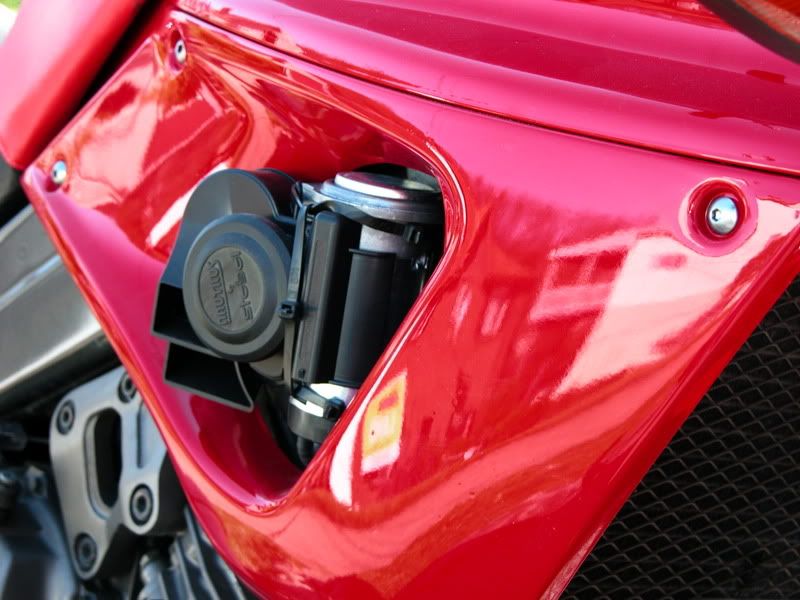

Stebel Nautilus compact airhorn with integrated compressor on my 900, to keep the thread up to date. Cheap, small, simple, clean, very effective:
More here: http://piloot.smugmu...gallery/1871672
More here: http://piloot.smugmu...gallery/1871672
Emile
www.piloot.com
'80 Honda CB400T Hawk, '92 Yamaha XJ600S Diversion, '90 Honda PC800 Pacific Coast, '92 Honda ST1100ABSTCS Pan European, '00 BMW R1150GS ABS, '04 Yamaha XP500i T-max, '01 Triumph Sprint ST 955i, '06 Yamaha TDM900A GT, '02 Honda ST1300A Pan European
www.piloot.com
#22
catsbum
-
- Supporting Member(thanks)
-
- 7,057 posts
Sponsored by AutoGlym
- Location:California Berks
- TDM model: 2007
Posted 17 September 2007 - 09:41 pm
E-njoy, Nice looking horn. Shiny too. Hmmmm. Its also nice to see you too have used nylon ties to secure your audible device.
Any chance of you attaching a WAV file of your horn
I will if you will....
Any chance of you attaching a WAV file of your horn
I will if you will....
#23
TonyDevil
-
- Supporting Member(thanks)
-
- 9,336 posts
seagull squadron leader & founding member of GoatTracKrew
- Location:Saarfend-on-Sea, Essex
- TDM model: 1991
Posted 18 September 2007 - 08:06 am
QUOTE(CatsBum @ Mon 17th Sep 2007, 10:02 PM) <{POST_SNAPBACK}>
Went to work today and found a new use for my airhorns: Just press the button when sitting by a car with a chump on his phone. He gets pissed off as he can't talk, I'm laughing as I'm sure he wet his pants as well.
I like my horns I do
I like my horns I do
lol nice....but are they louder than a blip of trixys throttle?
"Never argue with an idiot. They just bring you down to their level and beat you with experience"
My TDM :
Black 1991 850 MK1, 160k+ miles(ish, best guess really, gave up trying to keep count after 3rd set of clocks and 3rd engine), PilotRoad2 tyres, custom stubby exhaust system, bluespot calipers & goodridge braided hoses with dunlopads, maxton forks, Ohlins shock, kedo handguards, stainless TDM grill, Scottoiler with lubetube & dual nozzle thingy, Givi Wingrack2 with E45 & 2xE36s, renntec crash bars, Autocom with blueteeth & PMR radio, TomTom Rider2, Optimate IIIsp, Bagster tank cover, anti-dazzle coating
to fit : led spotlights, heated grips, new braided lines and rear caliper that actually has bleed nipples
Silver-ish 2003 900, 70k miles, PilotRoad3 front tyre (new@65k) & PR2 rear(new at 69k), Renthal 755 bars with KTM handguards, oxford unheated grips, power commander 3usb, scorpion titanium exhausts, standard screen with vario winglet thingy, stainless grill, oem centre stand, bagster tank cover, givi monokey topplate mounted on grabrail with V46 topbox, Givi PL pannier rails with E21s, crash bungs, mirror extender thingys, Halfords Advanced Laser Blue brillance bulbs, 21w led spotlights, touring scottoiler with leehenty dual nozzle, Autocom with blueteeth & PMR radio, TomTom Rider3 Urban, winter style anti-dazzle coating
to fit : led brake light strip, replacement heated grips
current rides : TDM850 3vd/mk1=tourer&scratcher, TRX850=weekend twisty toy, 2003 TDM900=commuter, 2005 TDM900=unmolested. Gone but not forgotton : XTZ750=overland touring toy, GS500e, GS125
If a strange looking truck driver honks at you & gives you the thumbs up, its could be me
#24
catsbum
-
- Supporting Member(thanks)
-
- 7,057 posts
Sponsored by AutoGlym
- Location:California Berks
- TDM model: 2007
Posted 13 December 2007 - 06:06 pm
Well here we are some months later and this evening the air horns are coming off and the Stebel Nautilus is going on.
Questions.
1) E-njoy. Did you use a relay on your horn?
2) Anyone fitted these to a Mk1. If so how and where?
ta
Questions.
1) E-njoy. Did you use a relay on your horn?
2) Anyone fitted these to a Mk1. If so how and where?
ta
#25
ChrisG
-
- Supporting Member(thanks)
-
- 8,281 posts
Resident vulture
- Location:Netherlands
- TDM model: 2009
Posted 13 December 2007 - 09:10 pm
Stebel Magnum will go on without a relay, the Nautilus will need a relay
1992 Mk1, 76k miles, Hagon springs, MTC exhaust, 4½ gears Gone now
2009 900 abs, 42k miles, Yamaha heated grips, double bubble screen, R&G crash bungs, scottoiler, Autocom, 1500 lumen LED spotlights.
#26
tdm850rider
-
- Member
-
- 6,103 posts
Carpe Citizen
- Location:Pittsburgh, Pennsylvania USA
- TDM model: 1992
Posted 13 December 2007 - 09:14 pm
QUOTE(CatsBum @ Thu 13th Dec 2007, 12:51 PM) <{POST_SNAPBACK}>
Well here we are some months later and this evening the air horns are coming off and the Stebel Nautilus is going on.
Questions.
1) E-njoy. Did you use a relay on your horn?
2) Anyone fitted these to a Mk1. If so how and where?
ta
Questions.
1) E-njoy. Did you use a relay on your horn?
2) Anyone fitted these to a Mk1. If so how and where?
ta
Here using an existing bolt under the RH fairing sidepiece.
There are some ties for added security.
Always tell the truth, it will gratify some of the people and astonish the rest. (Mark Twain)
£
Stebel Nautilus air-horn, Corbin seat, MRA Touring screen, single Delkevic silencer.
"I see by your outfit that you are a spaceman"(MkI (3VD) TDM Review)
Hints for using Carpe-TDM. (photo's, links, etc).
#27
catsbum
-
- Supporting Member(thanks)
-
- 7,057 posts
Sponsored by AutoGlym
- Location:California Berks
- TDM model: 2007
Posted 13 December 2007 - 10:32 pm
Thanks to Thomas and Chris for the replies
Fitted the horn under the fairing after some umming and arrring. Under the speedo using good Ol nylon ties. Very secure too. The relay will have to wait till next off day as I ran out of time. Still sound pretty damn loud.
edit: Explain to me what function the relay has?
Fitted the horn under the fairing after some umming and arrring. Under the speedo using good Ol nylon ties. Very secure too. The relay will have to wait till next off day as I ran out of time. Still sound pretty damn loud.
edit: Explain to me what function the relay has?
Edited by CatsBum, 13 December 2007 - 10:33 pm.
#28
tdm850rider
-
- Member
-
- 6,103 posts
Carpe Citizen
- Location:Pittsburgh, Pennsylvania USA
- TDM model: 1992
Posted 13 December 2007 - 10:55 pm
QUOTE(CatsBum @ Thu 13th Dec 2007, 05:17 PM) <{POST_SNAPBACK}>
Thanks to Thomas and Chris for the replies
Fitted the horn under the fairing after some umming and arrring. Under the speedo using good Ol nylon ties. Very secure too. The relay will have to wait till next off day as I ran out of time. Still sound pretty damn loud.
edit: Explain to me what function the relay has?
Fitted the horn under the fairing after some umming and arrring. Under the speedo using good Ol nylon ties. Very secure too. The relay will have to wait till next off day as I ran out of time. Still sound pretty damn loud.
edit: Explain to me what function the relay has?
I assume you have the Stebel hooked up with the existing horn wires.
As such the Stebel is only as loud as the amount of current the thin guage horn wires can handle.
With a relay the horn wires open a second switch allowing current to pass thru heavy guage wires to the horn.
Makes it louder and more melodious.
Always tell the truth, it will gratify some of the people and astonish the rest. (Mark Twain)
£
Stebel Nautilus air-horn, Corbin seat, MRA Touring screen, single Delkevic silencer.
"I see by your outfit that you are a spaceman"(MkI (3VD) TDM Review)
Hints for using Carpe-TDM. (photo's, links, etc).
#29
ChrisG
-
- Supporting Member(thanks)
-
- 8,281 posts
Resident vulture
- Location:Netherlands
- TDM model: 2009
Posted 14 December 2007 - 06:44 pm
...and stops it melting your electrics!
Nautilus will draw around 18A, which is more than both your headlights draw, so it should be attatched by a similar thickness of wiring as the lights, the standard horn will use a fraction of that so the wiring will be too thin to come with that much power (advantage of the Magnum, it only needs 8A)
Maplin sell a 30A relay for a couple of quid. Connect pin 85 to ground, 86 to the wire from the horn switch, 87 to your shiny new horn (with appropriate guage wire, then earth the other terminal of the horn), and pin 30 to 12V source that can cope the with current, best bet is generally to route it to the +ve battery terminal via a fuse (again, Maplin sell an inline fuse holder that will take a blade fuse).
Nautilus will draw around 18A, which is more than both your headlights draw, so it should be attatched by a similar thickness of wiring as the lights, the standard horn will use a fraction of that so the wiring will be too thin to come with that much power (advantage of the Magnum, it only needs 8A)Maplin sell a 30A relay for a couple of quid. Connect pin 85 to ground, 86 to the wire from the horn switch, 87 to your shiny new horn (with appropriate guage wire, then earth the other terminal of the horn), and pin 30 to 12V source that can cope the with current, best bet is generally to route it to the +ve battery terminal via a fuse (again, Maplin sell an inline fuse holder that will take a blade fuse).
Edited by ChrisG, 14 December 2007 - 06:46 pm.
1992 Mk1, 76k miles, Hagon springs, MTC exhaust, 4½ gears Gone now
2009 900 abs, 42k miles, Yamaha heated grips, double bubble screen, R&G crash bungs, scottoiler, Autocom, 1500 lumen LED spotlights.
#30
Guest_Pantboy_*
Guest_Pantboy_*
-
- Guests
Posted 14 December 2007 - 08:47 pm
QUOTE(ChrisG @ Fri 14th Dec 2007, 06:29 PM) <{POST_SNAPBACK}>
Maplin sell a 30A relay for a couple of quid. Connect pin 85 to ground, but you'll keep breaking the wire when you ride off 86 to the wire from the horn switch, 87 to your shiny new horn (with appropriate guage wire, then earth the other terminal of the horn), and pin 30 to 12V source that can cope the with current, best bet is generally to route it to the +ve battery terminal via a fuse (again, Maplin sell an inline fuse holder that will take a blade fuse).
86 to the wire from the horn switch, 87 to your shiny new horn (with appropriate guage wire, then earth the other terminal of the horn), and pin 30 to 12V source that can cope the with current, best bet is generally to route it to the +ve battery terminal via a fuse (again, Maplin sell an inline fuse holder that will take a blade fuse).
#31
catsbum
-
- Supporting Member(thanks)
-
- 7,057 posts
Sponsored by AutoGlym
- Location:California Berks
- TDM model: 2007
Posted 14 December 2007 - 08:50 pm
As always good advise given. Thanks chaps. Have now disconnected the Stebel until mod made. Did come with a relay. Have a look this weekend.....although working
#32
Landy
-
- Member
-
- 1,387 posts
I should post less and ride more
- Location:Mid Suffolk, UK
- TDM model: 2006
Posted 15 December 2007 - 11:27 am
I use these fuse holders a lot where water may be an issue, they are very good. Fuseholder
Vario touring screen, Stainless Steel Rad Guard,
Still in the shed:- BMW Hand Guards, Heated Grips, Aux Lamps.
#33
Tempest
-
- Member
-
- 282 posts
Carpe groupie
- Location:Horley S.E England (Near Gatwick Airport)
- TDM model: 2000
Posted 15 December 2007 - 01:26 pm
Oink & Be Happy.
#34
ChrisG
-
- Supporting Member(thanks)
-
- 8,281 posts
Resident vulture
- Location:Netherlands
- TDM model: 2009
Posted 15 December 2007 - 02:27 pm
QUOTE(Tempest @ Sat 15th Dec 2007, 01:11 PM) <{POST_SNAPBACK}>
Not too sure where you'd fir the 3 gallon air resevoir though
1992 Mk1, 76k miles, Hagon springs, MTC exhaust, 4½ gears Gone now
2009 900 abs, 42k miles, Yamaha heated grips, double bubble screen, R&G crash bungs, scottoiler, Autocom, 1500 lumen LED spotlights.
#35
catsbum
-
- Supporting Member(thanks)
-
- 7,057 posts
Sponsored by AutoGlym
- Location:California Berks
- TDM model: 2007
Posted 15 December 2007 - 05:31 pm
QUOTE(ChrisG @ Sat 15th Dec 2007, 02:12 PM) <{POST_SNAPBACK}>
Not too sure where you'd fir the 3 gallon air resevoir though
Well, If I have another curry like the one lst night, just find some 1/2" hosing, attach it and job's your uncle.
