Mrs CB and I were happily winding our way to work, when, with no traffic coming the other way I made a side road into a chicane

Exhibit A



When at 50MPH and flicking from right to left, bang, scrape, wobble and a distinct smell of melting rubber.
As I slide to a halt I'm thinking collapsed wheel or broken swing arm.
Oh no, no such luck for yours truly.
We get off and this is how it looked.



So, up on the centre stand and OMG, this is not going to be cheap

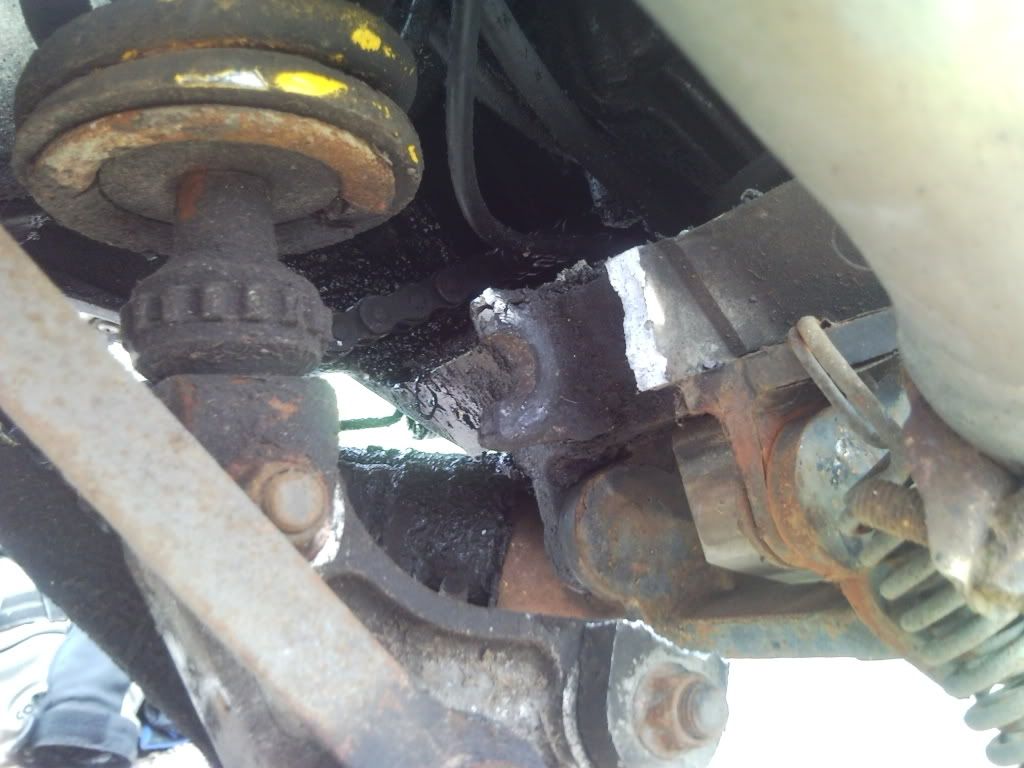

The two little lugs on the frame have snapped clean in half.

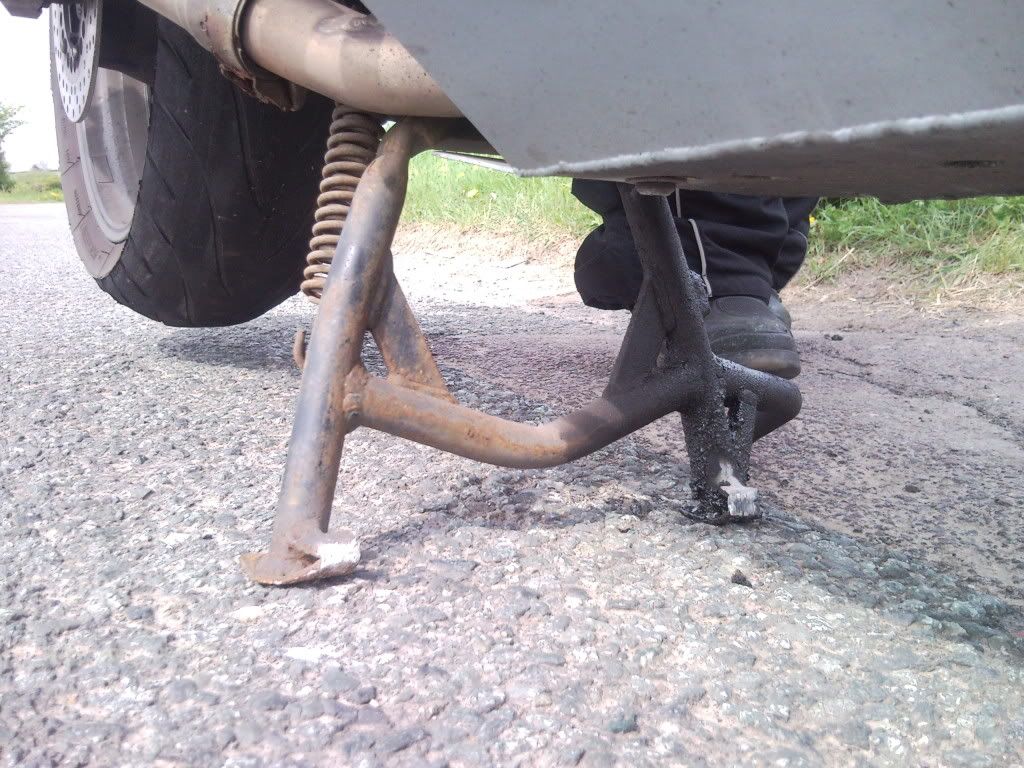

The only thing that saved us was the centre stand acting like a pair of skids.

Exhibit B



Anyway, we got recovered back home and a strip down will ensue shortly.
Failing a repair, it looks like I is going to need a new frame.

Edited by celticbiker, 13 June 2009 - 10:11 pm.

#2 gilbert

gilbert

    really likes Carpe

  • Member
  • 83 posts
  • Location:Singapore
  • TDM model: 1998

Posted 24 April 2009 - 06:48 pm

oh my, this looks bad...

#3 Guest_Negwedar_*

Guest_Negwedar_*
  • Guests

Posted 24 April 2009 - 07:06 pm

Phew! Glad you're both OK, must have been a buttock-clenching few seconds there...

#4 Guest_celticbiker_*

Guest_celticbiker_*
  • Guests

Posted 24 April 2009 - 07:12 pm

Yeah, didn't know adrenalin was that colour.

#5 munchkin

munchkin

    discovering Carpe

  • Members
  • 10 posts
  • Location:Buchan, N.E Scotland
  • TDM model: 2002

Posted 24 April 2009 - 07:23 pm

Blimey,good job you weren't in the middle of a bend !
First thoughts are; did part of the linkage seize thereby transferring load directly to frame lugs ?
I'd be interested to know the outcome,just cos I'm a nosey bugger mind !

#6 TDMick

TDMick

    TDMick

  • Member
  • PipPipPipPipPipPipPipPip
  • 3,830 posts
  • Location:South West London
  • TDM model: 2010

Posted 24 April 2009 - 09:00 pm

'kin hell mate that must have been an interesting few seconds!
Good save.
Glad you're both ok

Growing old is compulsory, growing up is optional
Who dies with the most toys wins!


2010 'stealth' grey 900. '14 plate. engine bars, Centre stand, datatool alarm, datatag, E22s, Cree DRLs, Barkbuster handguards, Carpe sticker. Led running lights




#7 TDMick

TDMick

    TDMick

  • Member
  • PipPipPipPipPipPipPipPip
  • 3,830 posts
  • Location:South West London
  • TDM model: 2010

Posted 24 April 2009 - 09:06 pm

second look
it looks as though the left side of the lug (in picture) has been broken a while and the right side has just given up.
there is some wear on the inner face of the right hand lug and damage at the top, which might indicate a problem that has been around for a while.
Is this a bit of the niner that gets a regular check / lube?
Apart from everyone on here this weekend I mean?

Growing old is compulsory, growing up is optional
Who dies with the most toys wins!


2010 'stealth' grey 900. '14 plate. engine bars, Centre stand, datatool alarm, datatag, E22s, Cree DRLs, Barkbuster handguards, Carpe sticker. Led running lights




#8 sidestand

sidestand

    Carpe Citizen

  • Member
  • PipPipPipPipPipPipPipPip
  • 3,456 posts
  • Location:Lincolnshire
  • TDM model: 1996

Posted 24 April 2009 - 09:17 pm

Fookin' hell! ohmy.gif
Glad you're both OK. that looks like it's been waiting to happen for a while CB .................

Now, if you'll excuse me, I'm off out to the garage with me torch .............But on a more serious note, this looks like a Yamaha recall for frame safety checks !

Make sure Yamaha are officially notified & if they don't want to know, inform VOSA

post-1-1150550726.gifpost-1-1150559830.gifpost-1-1152402501.jpgThe older I get, the better I was

96 MkII in yellow & silver with bluespots, braided lines, Remus 2 into 1, Hagon rear shock & fork springs, bashplate, heated grips,Motech pannier racks, Road Attacks, Jockoiler, Baglux tank cover & bag. Gone to a far better place - hasn't it Remo?
Another 96 Mk2 in yellow & silver - absolutely standard & pristine ( apart from a butchered rear mudguard - but I'm looking for a new one
'76 Suzuki GT500 Stroker in need of a rebuild
'80 Yamaha XT250 mudplugger
another '81 XT250
'91 BMW R80GS - this one really will do a RTW trip
'05 BMW K1200S - inline four with a shaft
'10 BMW R1200GSA Anniversary Edition
'02 Fazer 1000 - 4 carbs are better than 2 ! - water pump rebuilt by Mr Ramrod Engineering
'00 Triumph Adventurer - Cruiser with a difference - British & a triple
Gary's Bathtub - '99 BMW K1200RS in luvverly pillarbox red . Now been Waspycycled to Nuneaton
And the Latest Addition - a nice BMW G650 XCountry greenlaner - on long term loan to Boy Wonder

1996 Kawasaki KH125 Stroker

2000 TDM Mk2A - nicely Studleyfied - Modified by Masterbrewer, but we've fixed that now !

BMW K1300R

2004 TDM 900 in Silver/Blue - heated grips, MRA vary screen, Wilbers rear shock & engine bars to fit

BMW S1000XR in white

#9 Magic

Magic

    Carpe groupie

  • Member
  • PipPip
  • 276 posts
  • Location:West Sussex
  • TDM model: 1993

Posted 24 April 2009 - 09:19 pm

Good save - not sure I would have kept that upright, especially two up!

Had a nasty experience in my Landy on Monday when one of the rear wheels locked up (brake shoe disintegrated) at about 50mph, luckily there was a soft verge...
Magic

The bike is faster than the eye or the hand.

Reborn MK1 - rubbish exhaust, dirty engine, missing bolts, missing mirrors, leathal rear tyre, crap carbs - but it doesn't ground out like my old CB750 Custom used to do :-)
Now with DL650 handguards and Garmin Sat Nav

#10 Guest_celticbiker_*

Guest_celticbiker_*
  • Guests

Posted 24 April 2009 - 09:23 pm

Should do really, but I lubed it 6 months ago and thought I need to ave a look at that on the weekend, then forgot by the time I got home.
Not that looking would have prevented it happening though.
I suppose I could say it's my own fault really, the roads around my locale are awful and I don't slow down or activly try to avoid pot holes or raised iron works( should have an XT ), and I am 2 up most of the time(30 stone).
All that said you still don't expect that to happen.

#11 wicklamulla

wicklamulla

    is it Jizzy Rascal time yet.....?

  • Supporting Member(thanks)
  • PipPipPipPipPipPipPipPip
  • 12,211 posts
  • Location:Parish of Cruwys (pronounced 'Cruise' just loike Tom) Morchard, Mid Devon.
  • TDM model: 1999

Posted 25 April 2009 - 02:48 am

fook me thas scary lookin'. Glad 'he' and 'she' are unwounded.

spyball alarm/immob, bluespot brake calipers and Stainless hoses, Fournales air adjustable shock with Remote Resevoir, forks raised 10mm thru yokes, racetech linear fork springs in 15 wt oil, Kappa wingrack/luggage, heated grips, Kedo handguards, dual heat controller to power heated jacket liner and or pants!!, Stebel 136DB horn, K&N air filter, colour matched Baglux tank cover (magnetic tank bag modified to fit cover), osram +50% headloight bulbs, headlight protector,"NitramSpecial" parking loight, tail light indicators all running on LED's & incorporate "Lite Buddies", MK7 Scottoiler fitted, taller screen, 2-2 stainless steel CCC's, Devil stainless down pipes. MKI Renntec engine crash bars & sump guard.
engine changed july 2007 on a dyno run it made 79.1BHP / Torque 59.9Had a brief flirtation with a 1999 MKIIa but it blew an exaust valve on the M5 so was sold on to be repaired.

I loike tay and hang sangwiches !

www.kenhogantreeservices.co.uk

http://s33.photobuck...77/wickla/?sc=6



http://reg.imageshack.us/v_images.php


#12 Nick Apostolakis

Nick Apostolakis

    Carpe Regular

  • Member
  • Pip
  • 148 posts
  • Location:Crete, Greece
  • TDM model: 1999

Posted 25 April 2009 - 03:05 am

Yeah I think you are lucky to get out from this in one piece. Anyway, can this damage been repaired or you will go for a new frame?
--------------------------------------------------------------
Nick Apostolakis
e-mail: nickapos@oncrete.gr
Web Site: http://nick.oncrete.gr
--------------------------------------------------------------

#13 v8guy

v8guy

    Carpe junky

  • Member
  • PipPipPipPip
  • 420 posts
  • Location:Hampton
  • TDM model: 2003

Posted 25 April 2009 - 09:06 am

QUOTE(celticbiker @ Fri 24th Apr 2009, 07:41 PM) <{POST_SNAPBACK}>

Ouch!

On the other hand, you've just invented the Yamaha DN01



A friend of mine recently noticed his Multistrada sub-frame had sheared; despite it being well out of warranty, Ducati agreed to provide the replacement parts for free... you should get onto Yamaha about that.

v8guy; 2003 TDM900 with added bling: Nitron shock, Racetech fork internals, 17" front wheel, K&amp;amp;amp;N filter, Fuel silencers, PC3, Renthal handle bar, Oxford hot hands, Polisport handguards, Scottoiler (kinda..), Baglux, Givi monorack + pannier rails
My TDM: http://www.gtv8.org/tdm/

Current: 2003 Yamaha TDM900, 2015 BMW R1200RS
Past: Honda CLR125, Honda CB500, Triumph Sprint Sport, Honda VFR750FS, Suzuki DRZ400SM, Triumph Speed Triple 955i, 2015 Honda VFR800X

"Being shot out of a cannon will always be better than being squeezed out of a tube" - HST

#14 ChrisG

ChrisG

    Resident vulture

  • Supporting Member(thanks)
  • PipPipPipPipPipPipPipPip
  • 8,281 posts
  • Location:Netherlands
  • TDM model: 2009

Posted 25 April 2009 - 11:35 am

I'm quite liking the low rider look laugh.gif

Glad you're both ok. Lucky you've got the centrestand otherwise I guess the sidestand mount would have touched down first and thrown you to the right.

1992 Mk1, 76k miles, Hagon springs, MTC exhaust, 4½ gears Gone now :(
2009 900 abs, 42k miles, Yamaha heated grips, double bubble screen, R&G crash bungs, scottoiler, Autocom, 1500 lumen LED spotlights.


#15 Daveb

Daveb

    has been here 4ever

  • Member
  • PipPipPipPipPipPipPipPip
  • 1,907 posts
  • Location:Swansea
  • TDM model: no more

Posted 25 April 2009 - 11:58 am

Bloody 'ell CB, close shave glad you 2 are okay, I guess a little shaken up.

Edited by Daveb, 25 April 2009 - 04:31 pm.




1999 TDM850 MKII Black, Silver (Sold)
2007 Triumph Tiger 955i

#16 dandywarhol

dandywarhol

    Carpe Citizen

  • Supporting Member(thanks)
  • PipPipPipPipPipPipPipPip
  • 5,324 posts
  • Location:Edinburgh, Scotland
  • TDM model: 2003

Posted 25 April 2009 - 01:05 pm

Lucky you're ok - good.gif .......I'm with munchkin, my first thoughts were the linkage is part seized - these need taken out and cleaned/greased in UK salty conditions, a lube from the outside won't penetrate (if you pardon the expression wub.gif )

1967 Yamaha TD1C 250, 2014 Kawasaki W800, 2011 Aprilia Tuono 1000 V4, 2020 Yamaha XSR900

"At the cutting edge of technophobia" Scotland_180-animated-flag-gifs.gif mccoy.gif


#17 robelst

robelst

    has been here 4ever

  • Supporting Member(thanks)
  • PipPipPipPipPipPipPipPip
  • 1,844 posts
  • Location:Cotswolds
  • TDM model: no more

Posted 25 April 2009 - 01:27 pm

QUOTE(dandywarhol @ Sat 25th Apr 2009, 02:05 PM) <{POST_SNAPBACK}>
Lucky you're ok - good.gif .......I'm with munchkin, my first thoughts were the linkage is part seized - these need taken out and cleaned/greased in UK salty conditions, a lube from the outside won't penetrate (if you pardon the expression wub.gif )

A good ol' mud-flap and grease-nipples would have prevented that from happening. Then again, modern bikes aren't build to last and every penny that can be saved from manufacturing-cost counts. dry.gif I am still shocked (excuse the pun) though to see this and other (850) shocks snapping, even Buell has the decency to recall and investigate this sort of issue (on the 2nd recall shock on my Buell laugh.gif ).
That was not a banana, Dougal

#18 Guest_celticbiker_*

Guest_celticbiker_*
  • Guests

Posted 25 April 2009 - 01:39 pm

Thanx for your concern everybody, but it wasn't that big a deal really, I rode speedway/grasstrack for 14 years, thus I am used to being out of control.
(That sounds more big headed than it was supposed to)
I do realise it could have turned out a lot worse, and luck did play it's part.
As for the fix, well, I have a plan but think that I will contact Yam UK before proceeding too far as I will need to take a grinder to the frame to remove whats left of the original lugs.
Thanx again guys
Will keep you informed on how this plays out.

Dave B
QUOTE
Bloody 'ell CB, close shave glad you 2 are old I guess a little shaken up.


Eh?

Edited by celticbiker, 25 April 2009 - 01:42 pm.

#19 Daveb

Daveb

    has been here 4ever

  • Member
  • PipPipPipPipPipPipPipPip
  • 1,907 posts
  • Location:Swansea
  • TDM model: no more

Posted 25 April 2009 - 04:32 pm

sorry CB it was a typo, you can't get the staff today it should have said 'okay'



1999 TDM850 MKII Black, Silver (Sold)
2007 Triumph Tiger 955i

#20 Guest_GuyGraham_*

Guest_GuyGraham_*
  • Guests

Posted 25 April 2009 - 06:38 pm

I agree with the post above - take it to your local Yam dealer and starting making noises about not fit for purpose

Yam may well cough up a new frame as good will gesture
I'm sure they don't want any bad publicity about cracking frames in MCN (who mentioned GSXR1000K5)
